60 MHz Benchtop NMR Spectrometers from Anasazi Instruments
Anasazi Instruments has been serving the NMR community for 25 years. We want as many as possible to experience the incredible power of NMR spectroscopy. That’s why we developed a 60 MHz benchtop NMR spectrometer.
Are you looking for a benchtop NMR? You might be a chemistry professor who teaches NMR, a synthetic chemist who needs to determine or confirm a molecular structure, or maybe you use NMR in R&D. Learn about the benefits of our 60 MHz Benchtop NMR.
60 MHz Benchtop NMR Specifications
Easy to install and maintain.
Benchtop Performance Specifications
| Test | Sample | Test Parameters | Specifications |
|---|---|---|---|
| 1H Resolution & Lineshape | 1% TMS in CDCl3 | FWHM 0.55 % 0.11 % |
0.25 Hz 6 Hz 12 Hz |
| Sensitivity | 1% Ethylbenzene in CDCl3 |
1 scan
|
200:1 |
| 13C Sensitivity | 98% n-propylbenzoate + 2% TMS, |
1 scan
|
20:1 on aromatic 2,6 carbon peak at 129.1 ppm |
Benchtop Physical Specifications
| Dimensions (H x W x D) inches |
18 x 16 x 16 |
| Weight (lbs) | 200 lb, 91 kg |
| Compressed Air | 1 cfm @ 10 psi max |
| Climatic Environment | 60 to 80 °F |
| Stray Field | < Earth’s field outside of magnet case |
Real Data from the Benchtop
See spectra below
Configurations
The 60 MHz benchtop NMR spectrometers are currently available in 1H and 1H/13C configurations.
1H/19F, 1H/13C/19F and wideband configurations are coming soon.
Anasazi offers delivery, installation and on-site training. Please contact us for a quote.
60 MHz Benchtop NMR Spectra

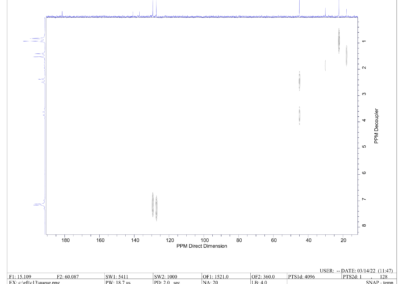

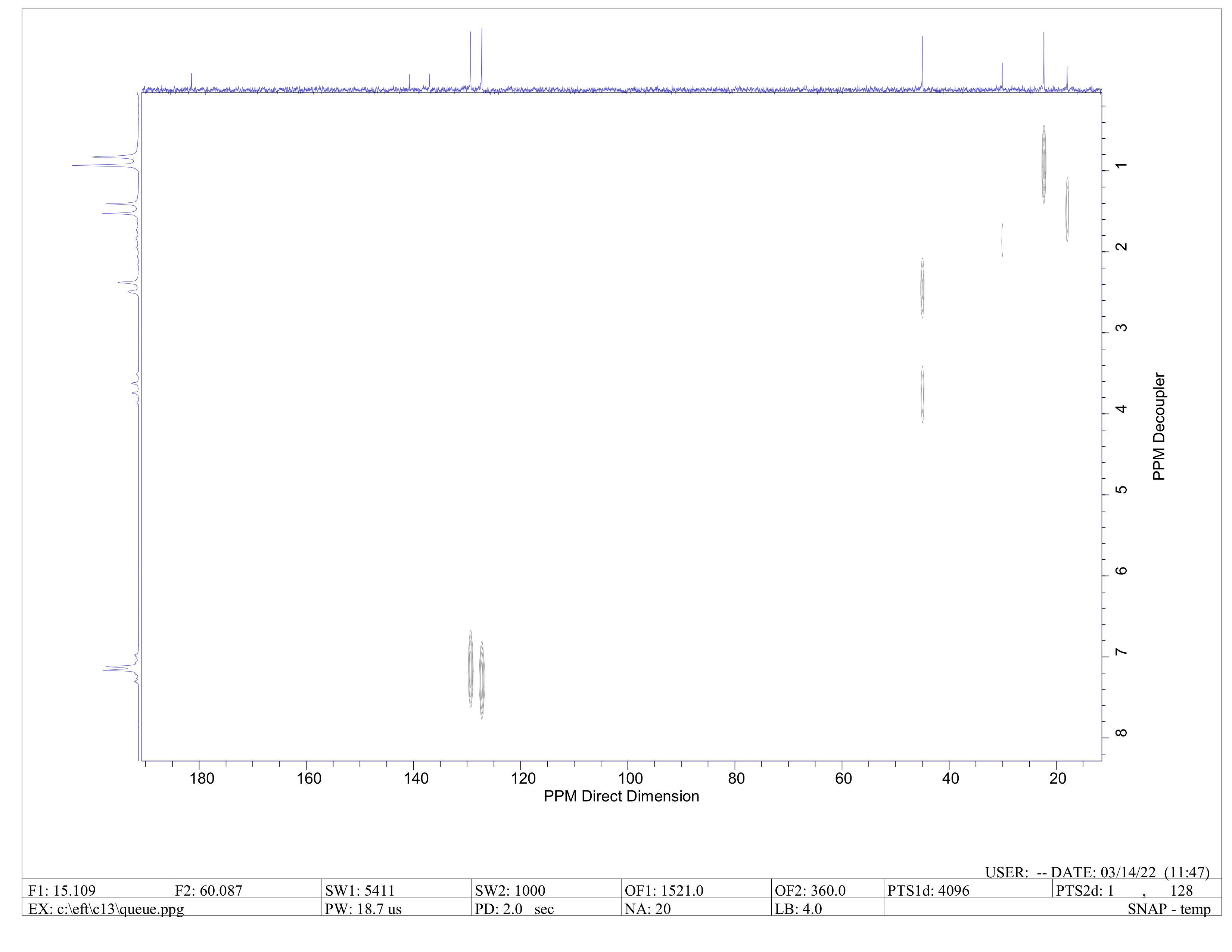

2M_IBP_1H_13C_HETCOR

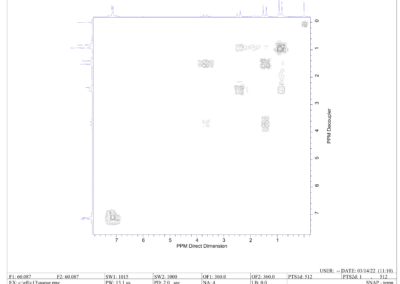

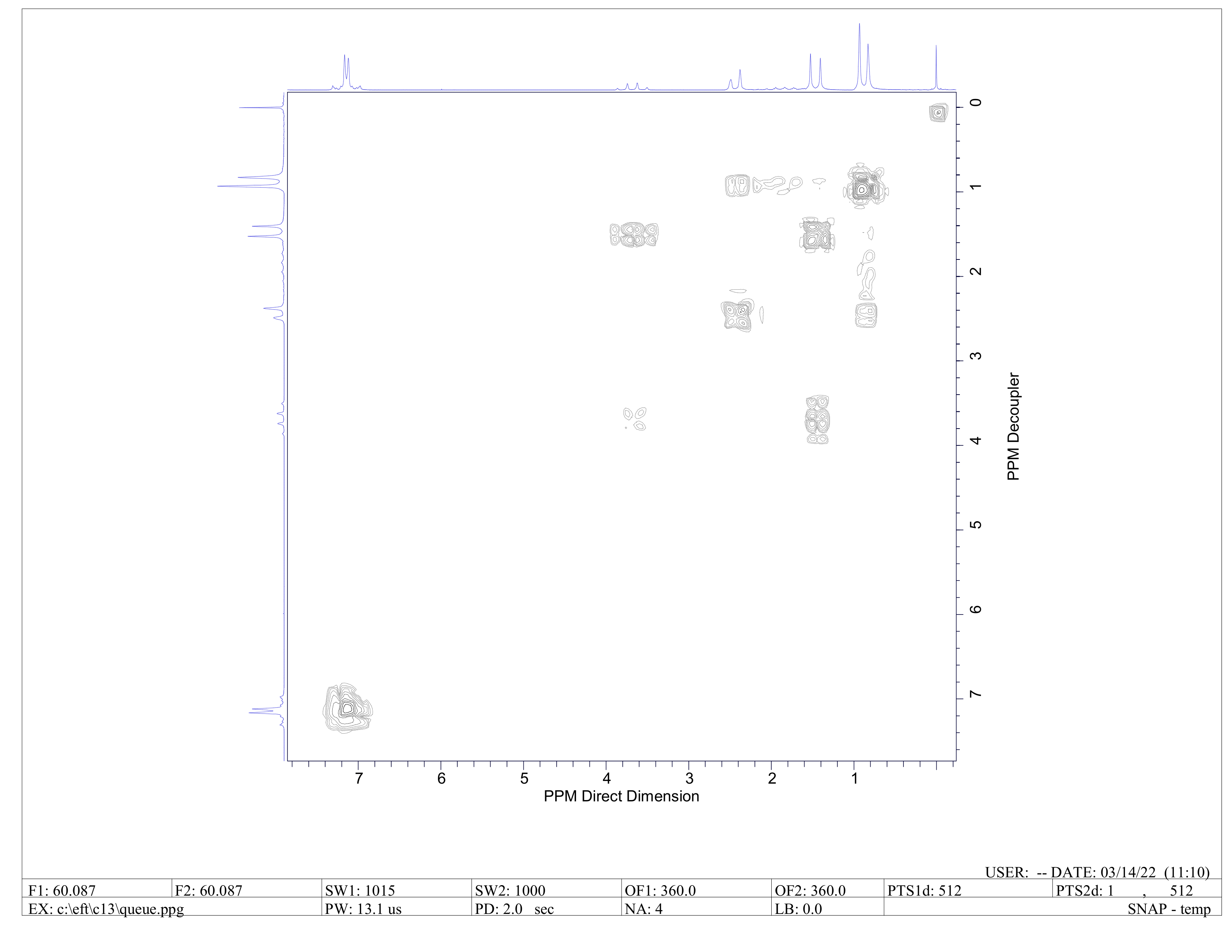

2M_IBP_1H_COSY

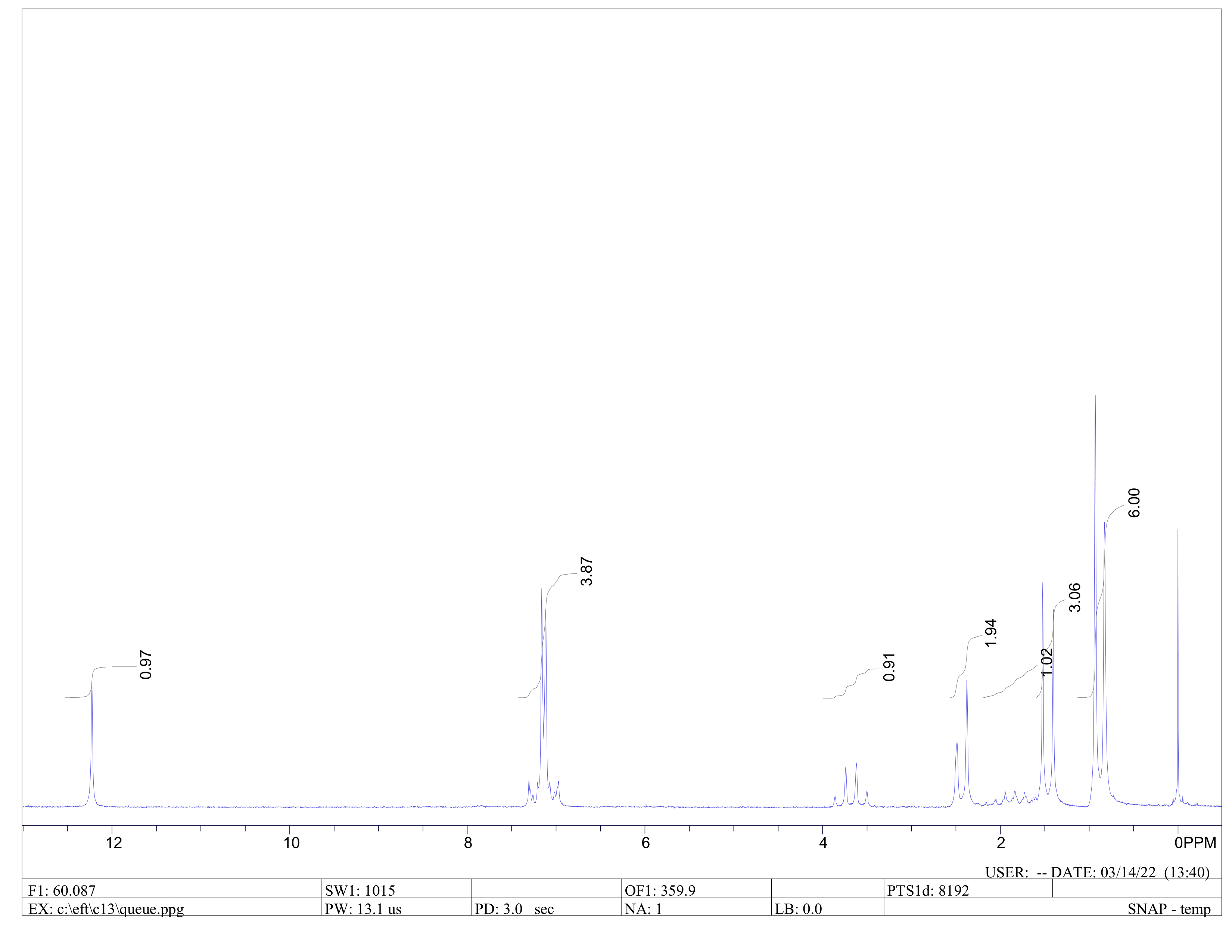

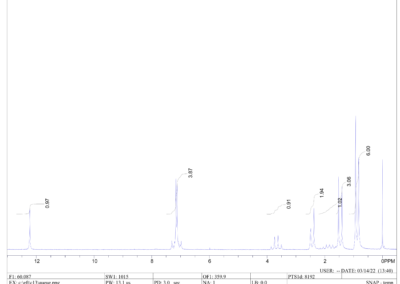

2M_IBP_1H

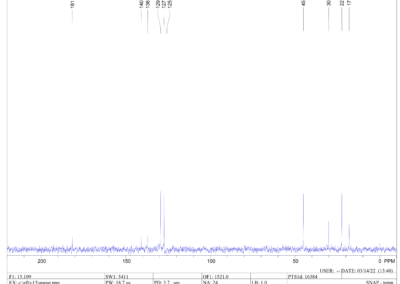

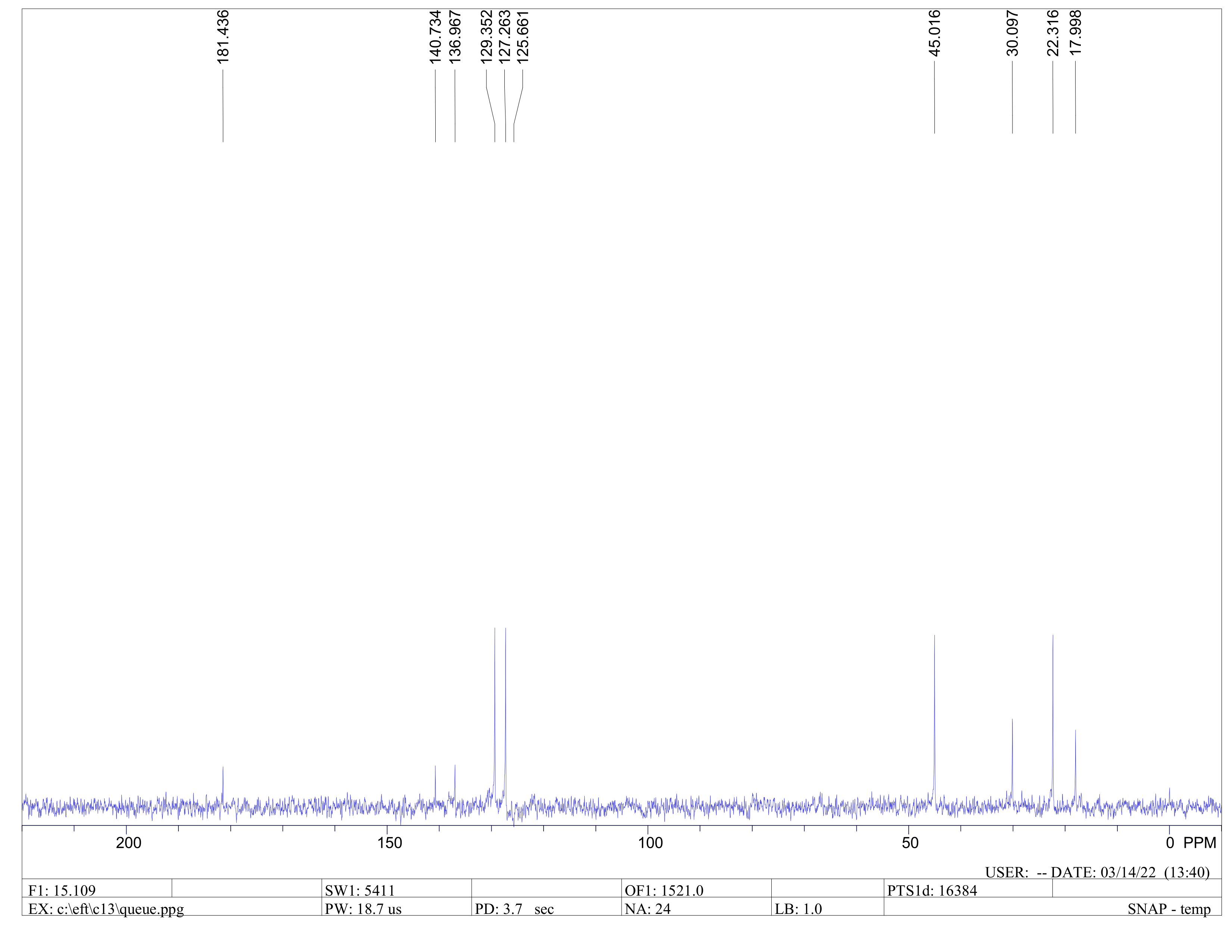

2M_IBP_13C_24_Scans
2M_IBP_13C_DEPT_24_Scans

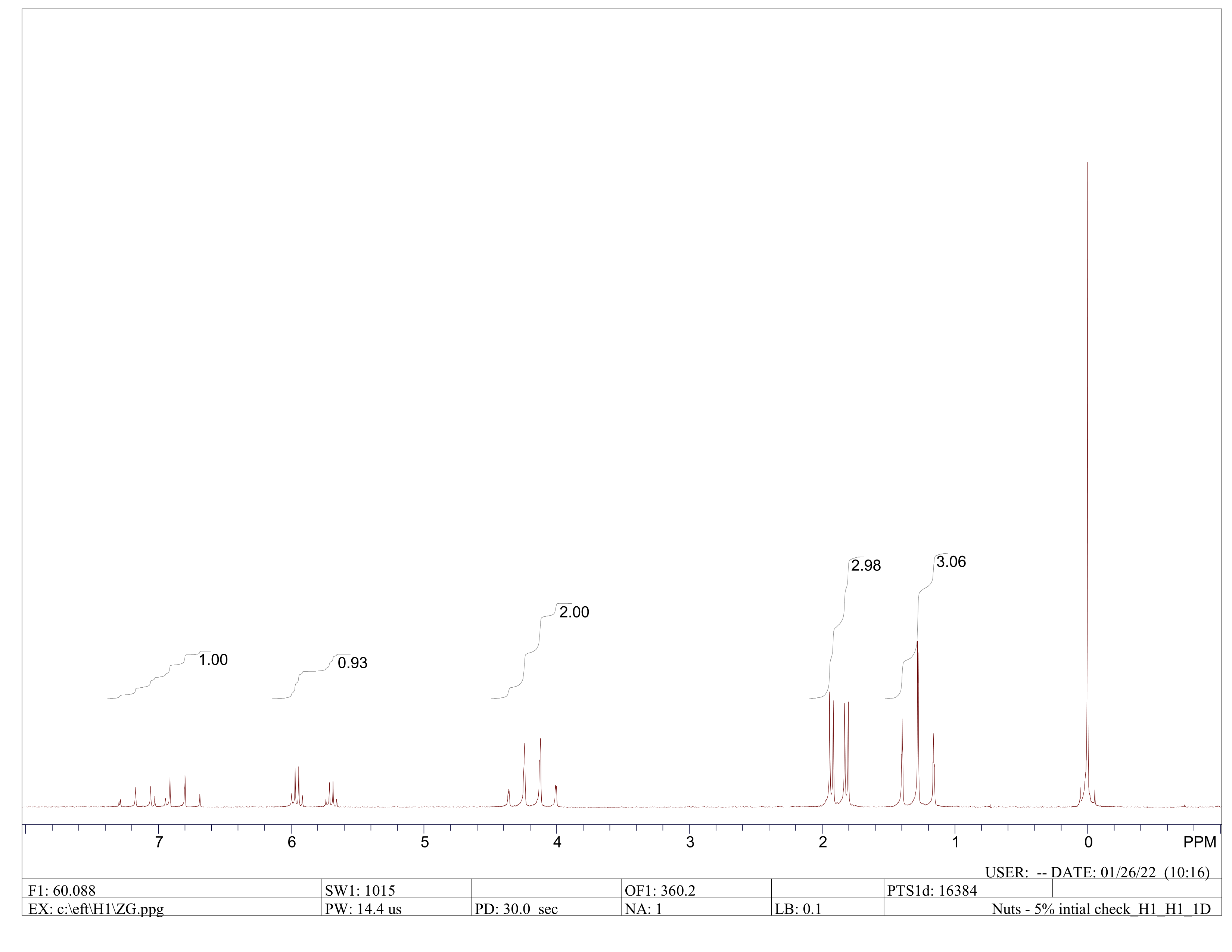

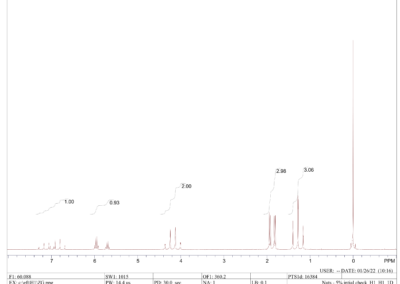

5 _1H

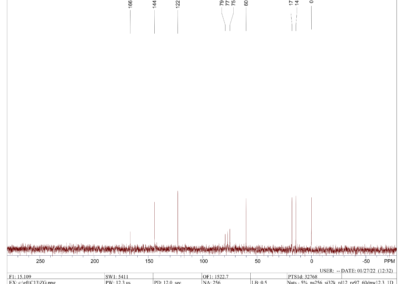

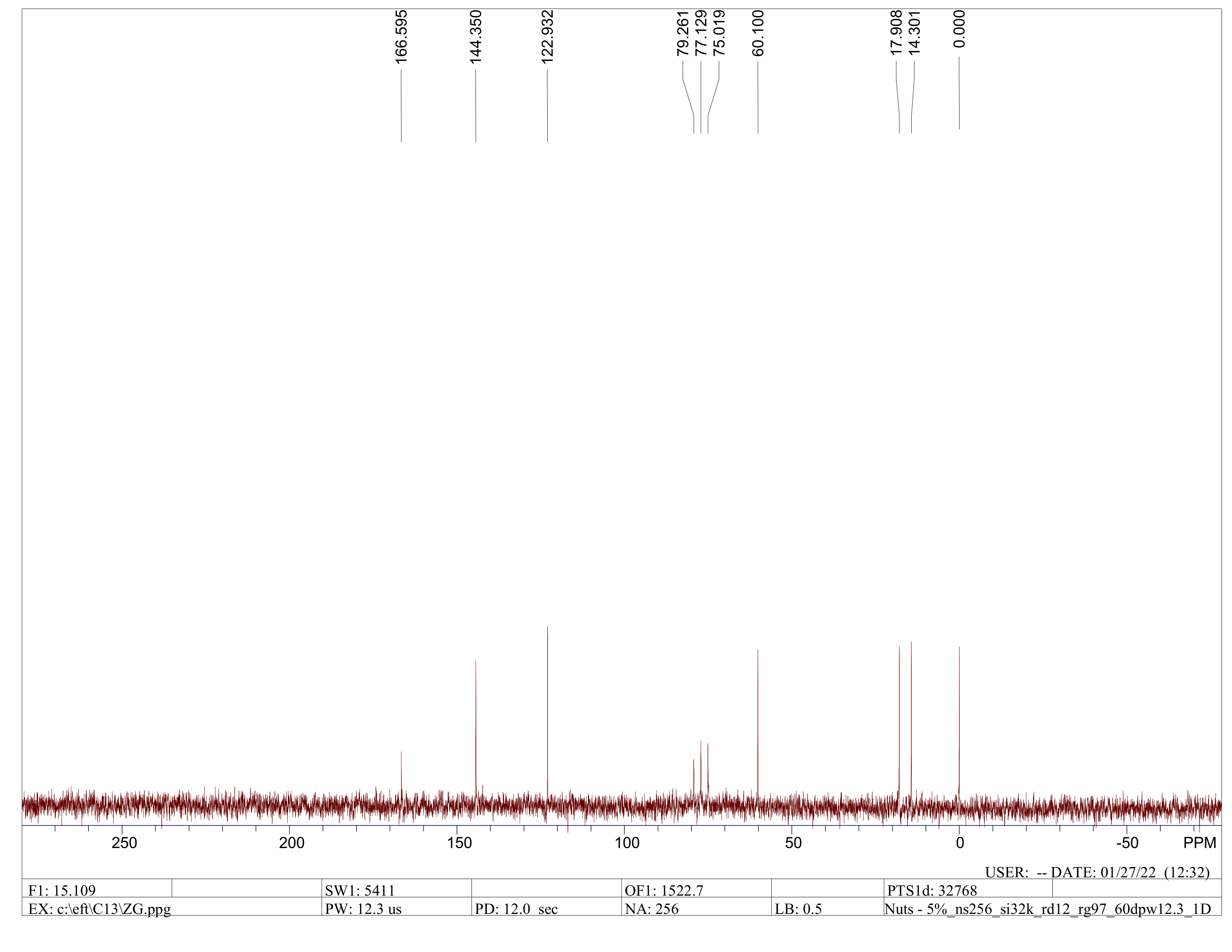

5 _13C_256 Scans

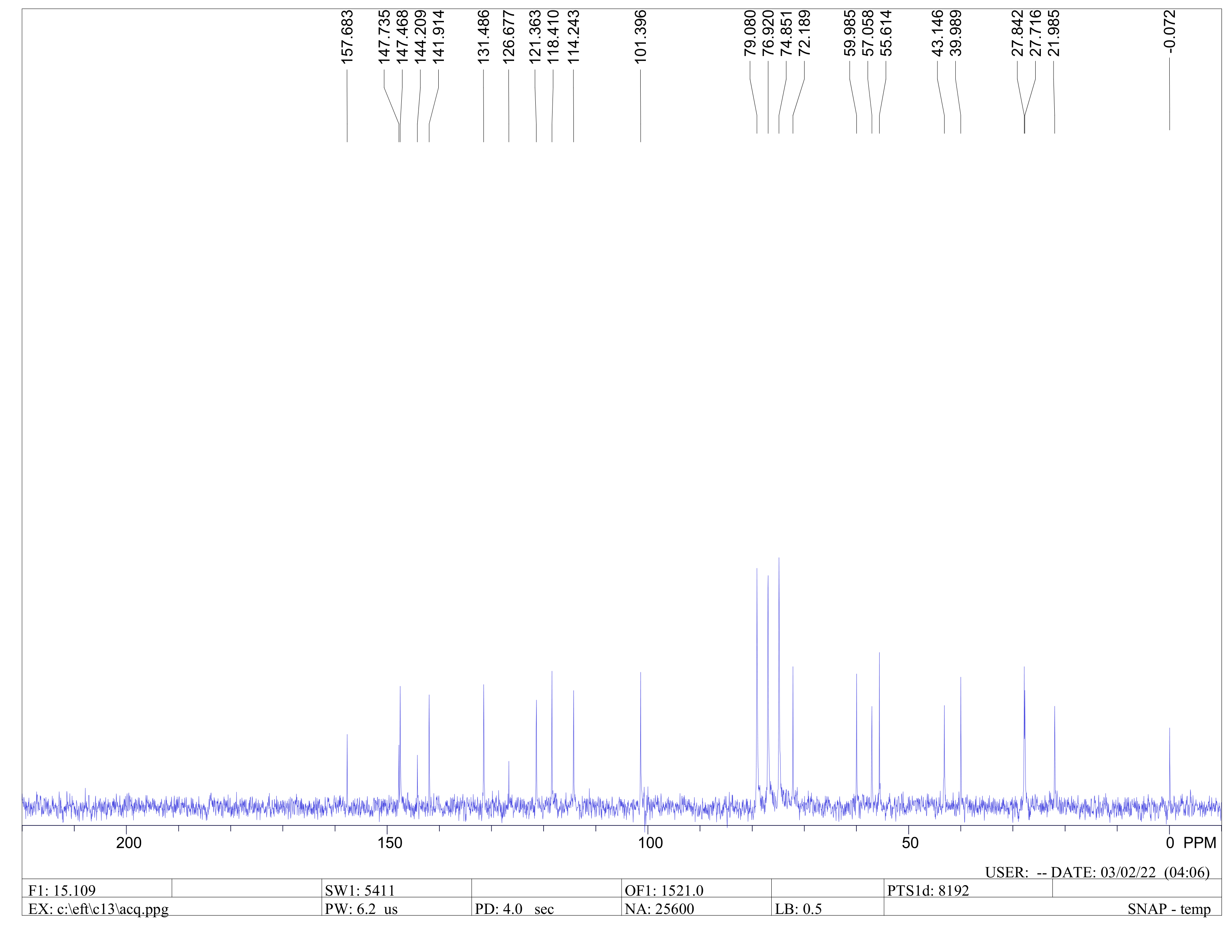

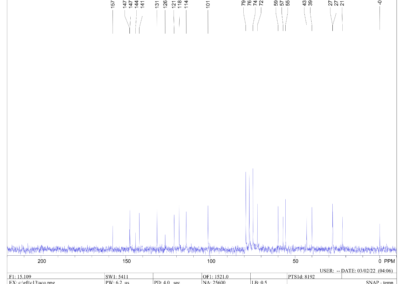

50mM_Quinine_25,600Scans

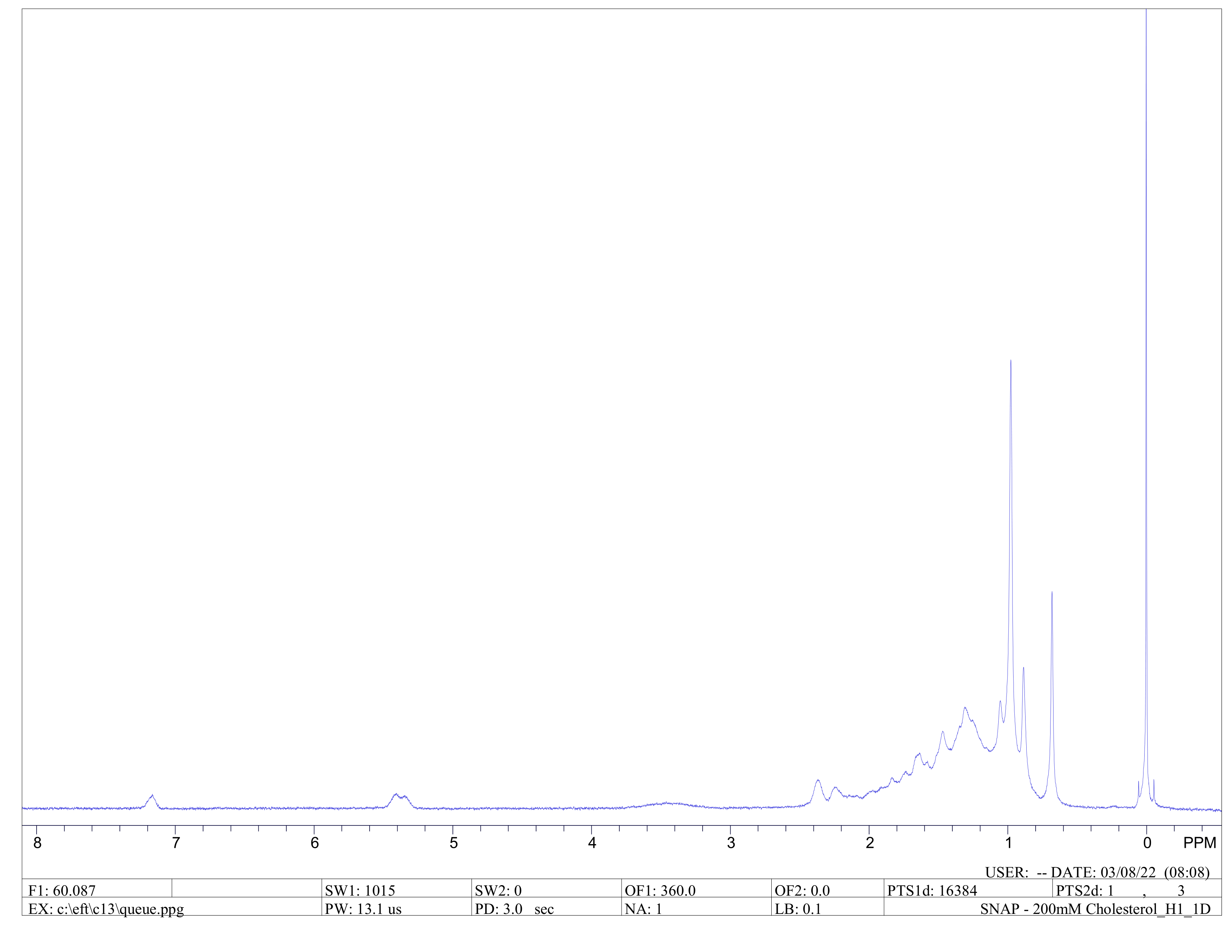

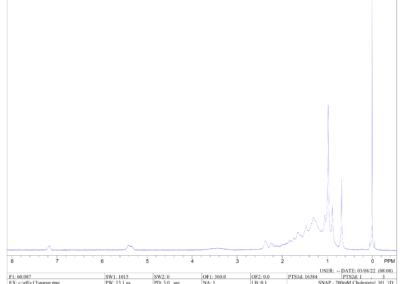

200mM Cholesterol_1H

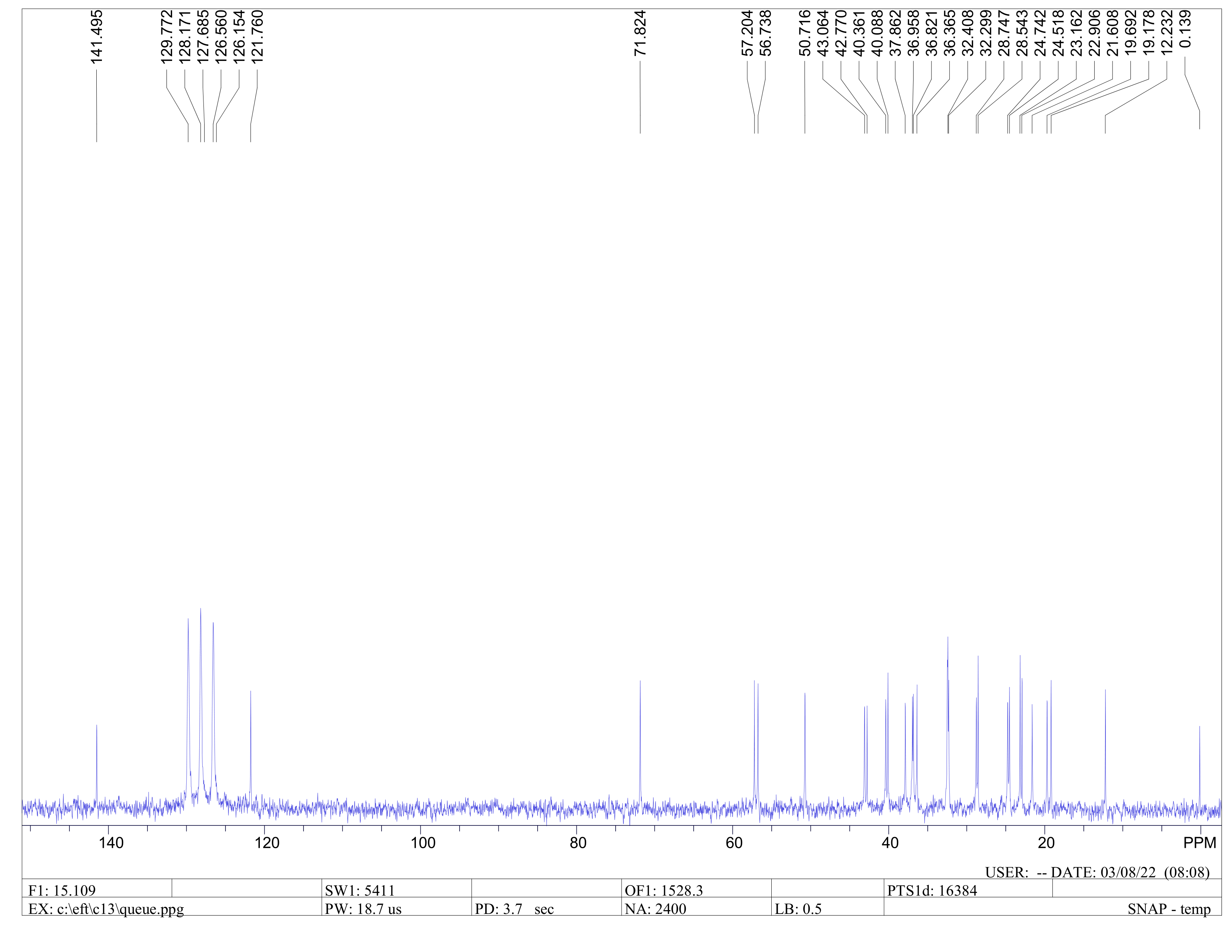

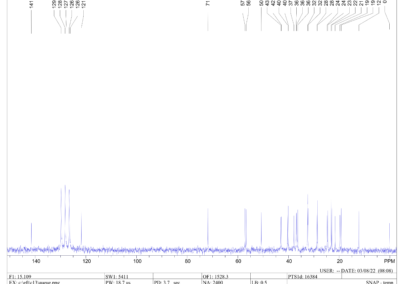

200mM Cholesterol_2500 scans
Make sure to choose the right one for your lab.
